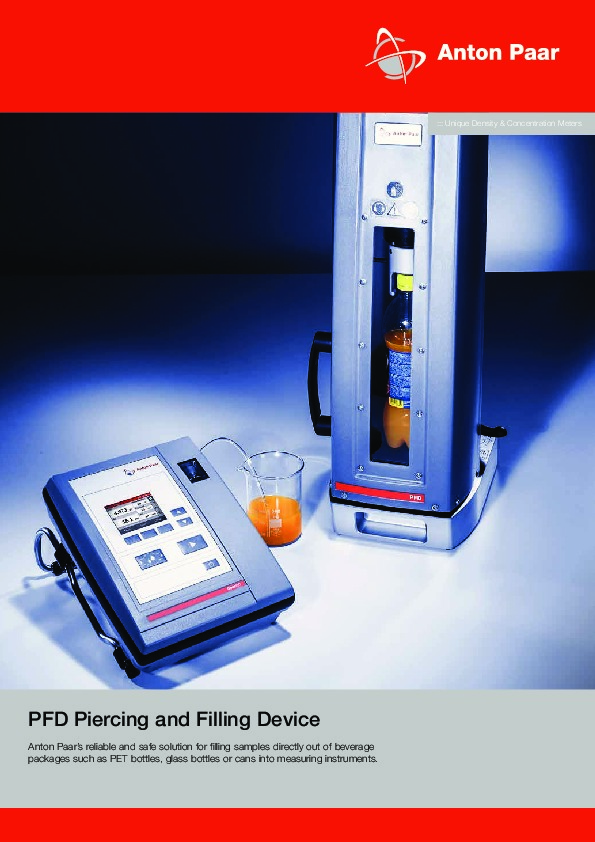

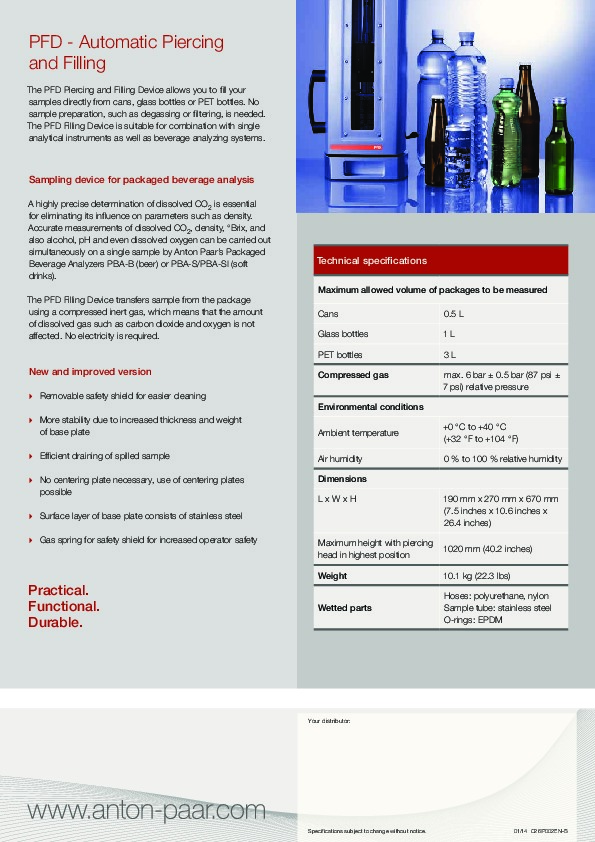

::: Unique Density & Concentration Meters PFD Piercing and Filling Device Anton Paar’s reliable and safe solution for filling samples directly out of beverage packages such as PET bottles, glass bottles or cans into measuring instr\ uments. Specifications subject to change without notice.01/14 C26IP002EN-B Your distributor: PFD - Automatic Piercing and Filling The PFD Piercing and Filling Device allows you to fill your samples directly from cans, glass bottles or PET bottles. No sample preparation, such as degassing or filtering, is needed. The PFD Filling Device is suitable for combination with single analytical instruments as well as beverage analyzing systems. Sampling device for packaged beverage analysis A highly precise determination of dissolved CO 2 is essential for eliminating its influence on parameters such as density. Accurate measurements of dissolved CO 2, density, °Brix, and also alcohol, pH and even dissolved oxygen can be carried out simultaneously on a single sample by Anton Paar’s Packaged Beverage Analyzers PBA-B (beer) or PBA-S/PBA-SI (soft drinks). The PFD Filling Device transfers sample from the package using a compressed inert gas, which means that the amount of dissolved gas such as carbon dioxide and oxygen is not affected. No electricity is required. New and improved version #F??R Removable safety shield for easier cleaning #F??R More stability due to increased thickness and weight of base plate #F??R Efficient draining of spilled sample #F??R No centering plate necessary, use of centering plates possible #F??R Surface layer of base plate consists of stainless steel #F??R Gas spring for safety shield for increased operator safety Practical. Functional. Durable. Technical specifications Maximum allowed volume of packages to be measured Cans 0.5 L Glass bottles 1 L PET bottles 3 L Compressed gas max. 6 bar ± 0.5 bar (87 psi ± 7 psi) relative pressure Environmental conditions Ambient temperature +0 °C to +40 °C (+32 °F to +104 °F) Air humidity 0 % to 100 % relative humidity Dimensions L x W x H 190 mm x 270 mm x 670 mm (7.5 inches x 10.6 inches x 26.4 inches) Maximum height with piercing head in highest position 1020 mm (40.2 inches) Weight 10.1 kg (22.3 lbs) Wetted parts Hoses: polyurethane, nylon Sample tube: stainless steel O-rings: EPDM
