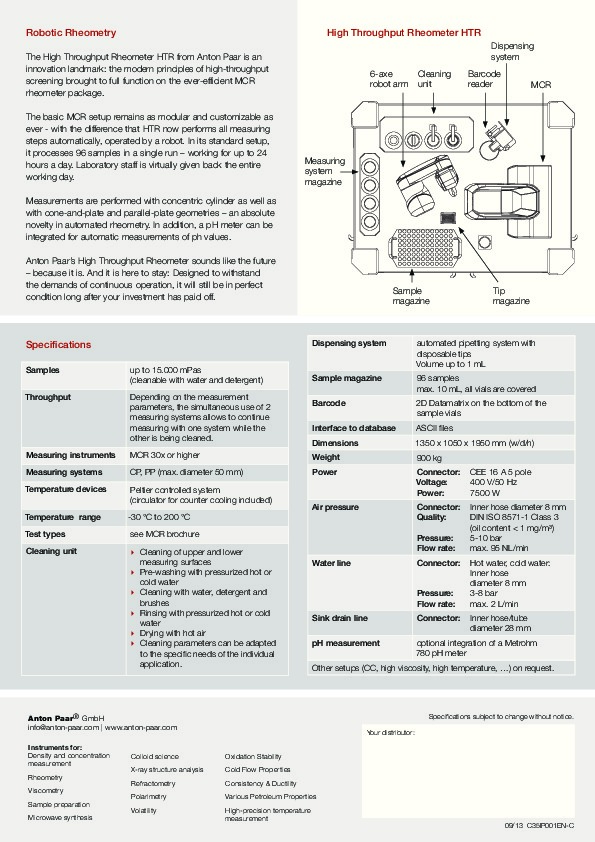

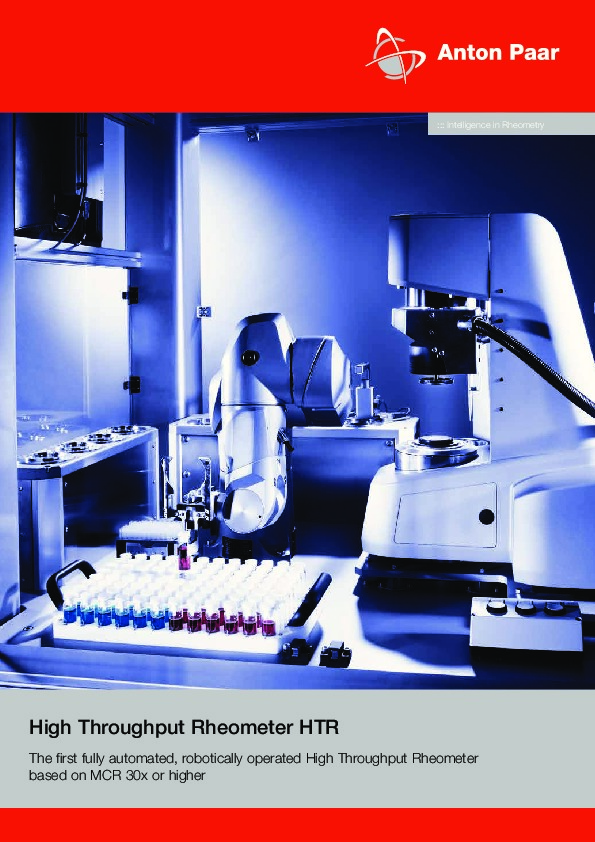

::: Intelligence in Rheometry High Throughput Rheometer HTR The first fully automated, robotically operated High Throughput Rheometer based on MCR 30x or higher Specifications subject to change without notice.09/13 C35IP001EN-C Your distributor: Robotic Rheometry The High Throughput Rheometer HTR from Anton Paar is an innovation landmark: the modern principles of high-throughput screening brought to full function on the ever-efficient MCR rheometer package. The basic MCR setup remains as modular and customizable as ever - with the difference that HTR now performs all measuring steps automatically, operated by a robot. In its standard setup, it processes 96 samples in a single run – working for up to 24 hours a day. Laboratory staff is virtually given back the entire working day. Measurements are performed with concentric cylinder as well as with cone-and-plate and parallel-plate geometries – an absolute novelty in automated rheometry. In addition, a pH meter can be integrated for automatic measurements of ph values. Anton Paar’s High Throughput Rheometer sounds like the future – because it is. And it is here to stay: Designed to withstand the demands of continuous operation, it will still be in perfect condition long after your investment has paid off. Samples up to 15.000 mPas (cleanable with water and detergent) Throughput Depending on the measurement parameters, the simultaneous use of 2 measuring systems allows to continue measuring with one system while the other is being cleaned. Measuring instruments MCR 30x or higher Measuring systems CP, PP (max. diameter 50 mm) Temperature devices Peltier controlled system (circulator for counter cooling included) Temperature range -30 °C to 200 °C Test types see MCR brochure Cleaning unit TQ?Cleaning of upper and lower measuring surfaces TQ? Pre-washing with pressurized hot or cold water TQ? Cleaning with water, detergent and brushes TQ? Rinsing with pressurized hot or cold water TQ? Drying with hot air TQ? Cleaning parameters can be adapted to the specific needs of the individual application. Specifications Dispensing system automated pipetting system with disposable tips Volume up to 1 mL Sample magazine 96 samples max. 10 mL, all vials are covered Barcode 2D Datamatrix on the bottom of the sample vials Interface to database ASCII files Dimensions 1350 x 1050 x 1950 mm (w/d/h) Weight 900 kg Power Connector: CEE 16 A 5 pole Voltage: 400 V/50 Hz Power: 7500 W Air pressure Connector: Inner hose diameter 8 mm Quality: DIN ISO 8571-1 Class 3 (oil content < 1 mg/m³) Pressure: 5-10 bar Flow rate: max. 95 NL/min Water line Connector: Hot water, cold water: Inner hose diameter 8 mm Pressure: 3-8 bar Flow rate: max. 2 L/min Sink drain line Connector: Inner hose/tube diameter 28 mm pH measurement optional integration of a Metrohm 780 pH meter Other setups (CC, high viscosity, high temperature, …) on request. MCR Dispensing system Barcode reader Cleaning unit 6-axe robot arm Measuring system magazine Tip magazine Sample magazine High Throughput Rheometer HTR Anton Paar ® GmbH info@anton-paar.com | www.anton-paar.com Instruments for: Density and concentration measurement Rheometry Viscometry Sample preparation Microwave synthesis Colloid science X-ray structure analysis Refractometry Polarimetry Volatility Oxidation Stability Cold Flow Properties Consistency & Ductility Various Petroleum Properties High-precision temperature measurement
