C35IP010EN-B

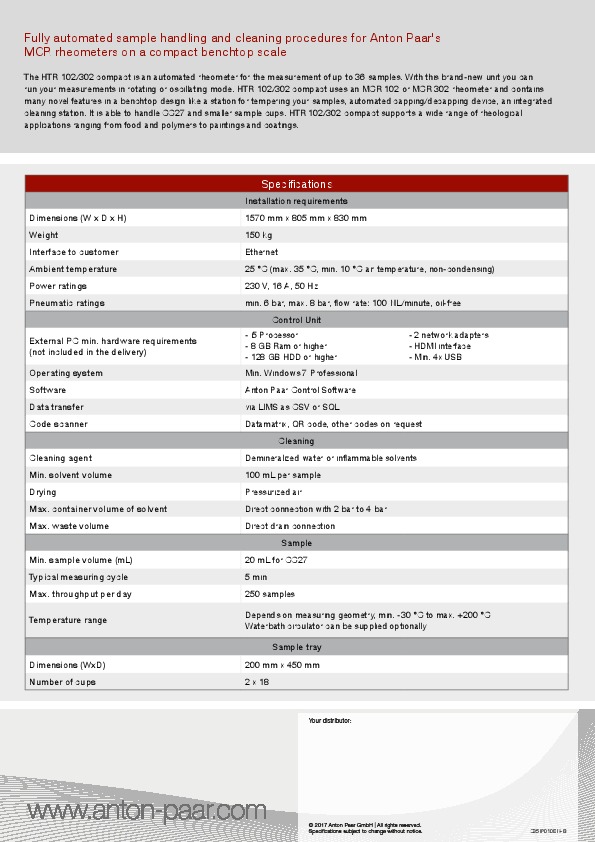

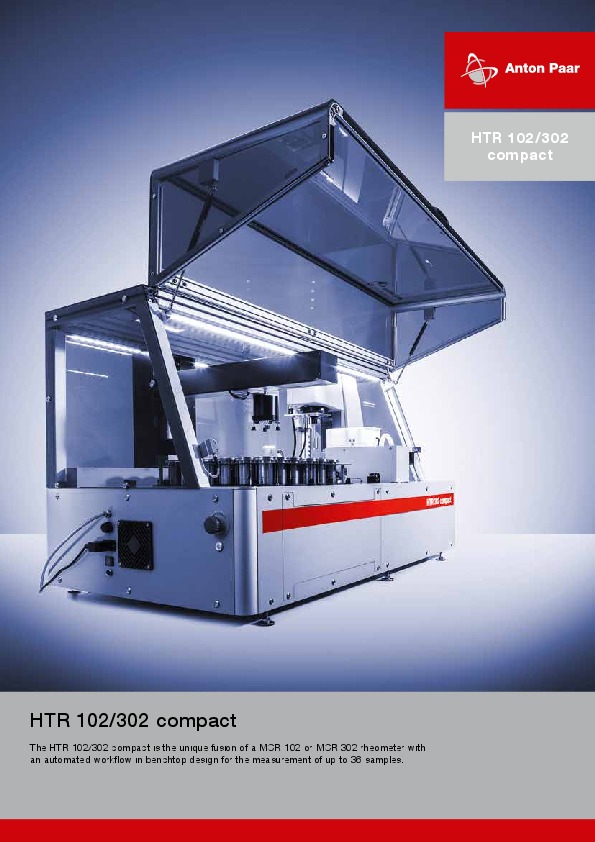

HTR 102/302 compact HTR 102/302 compact The HTR 102/302 compact is the unique fusion of a MCR 102 or MCR 302 rhe\ ometer with an automated workflow in benchtop design for the measurement of up to 36 samples. Fully automated sample handling and cleaning procedures for Anton Paar's MCR rheometers on a compact benchtop scale The HTR 102/302 compact is an automated rheometer for the measurement of up to 36 samples. With this brand-new unit you can run your measurements in rotating or oscillating mode. HTR 102/302 compact uses an MCR 102 or MCR \ 302 rheometer and contains many novel features in a benchtop design like a station for tempering your samples, autom\ ated capping/decapping device, an integrated cleaning station. It is able to handle CC27 and smaller sample cups. HTR\ 102/302 compact supports a wide range of rheological applications ranging from food and polymers to paintings and coatings. C35IP010EN-B 5??? Installation requirements Dimensions (W x D x H) 1570 mm x 805 mm x 830 mm Weight 150 kg Interface to customer Ethernet Ambient temperature 25 °C (max. 35 °C, min. 10 °C air temperature, non-condensing) Power ratings 230 V, 16 A, 50 Hz Pneumatic ratings A?B? ?''3W?8"??? Control Unit External PC min. hardware requirements (not included in the delivery) - i5 Processor - 8 GB Ram or higher - 128 GB HDD or higher - 2 network adapters - HDMI interface - Min. 4x USB Operating system Min. Windows 7 Professional Software Anton Paar Control Software Data transfer BTY? Code scanner %p%h(@?b Cleaning Cleaning agent Hy3u0RIb9gDB Min. solvent volume 0?S?h Drying Pressurized air Max. container volume of solvent Direct connection with 2 bar to 4 bar Max. waste volume Direct drain connection Sample Min. sample volume (mL) W?d Typical measuring cycle 5 min Max. throughput per day 250 samples Temperature range Depends on measuring geometry, min. -30 °C to max. +200 °C Waterbath circulator can be supplied optionally Sample tray Dimensions (WxD) 200 mm x 450 mm Number of cups 2 x 18
