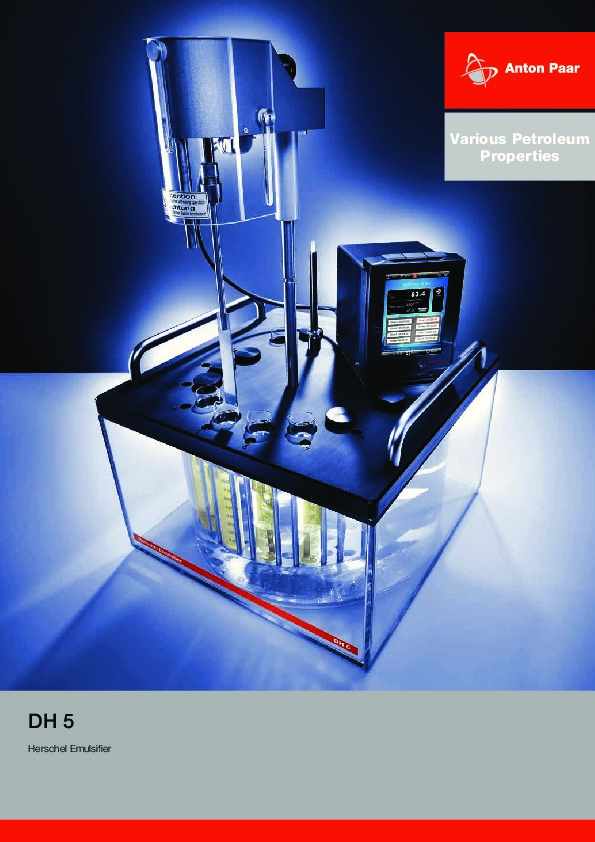

H44IP001EN-F_Datasheet_DH5

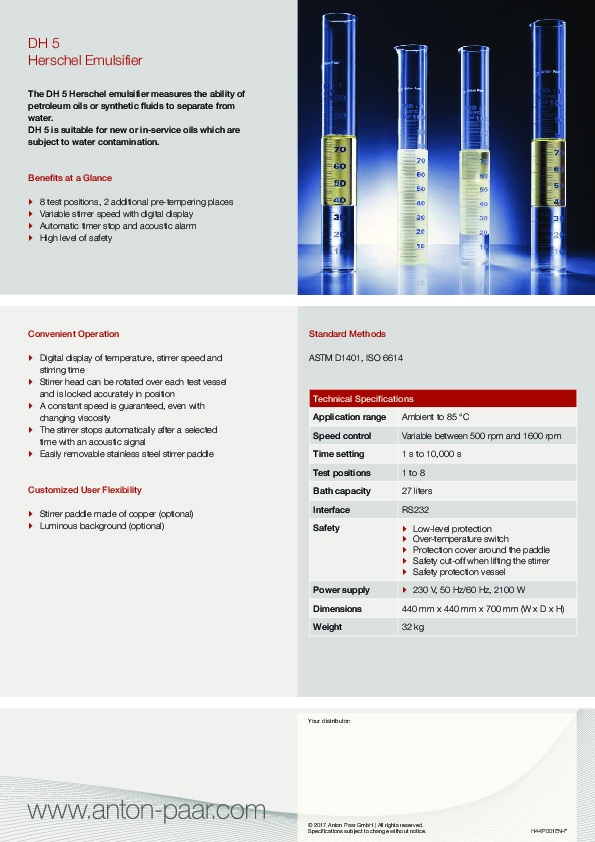

VP D H Standard Methods ASTM D1401, ISO 6614 Technical Specifications Application rangeAmbient to 85 °C Speed control Variable between 500 rpm and 1600 rpm Time setting 1 s to 10,000 s Test positions 1 to 8 Bath capacity 27 liters Interface RS232 Safety % A? "b4v Low-level protection % A? "b4v Over-temperature switch % A? "b4v Protection cover around the paddle % A? "b4v Safety cut-off when lifting the stirrer % A? "b4v Safety protection vessel Power supply % A? "b4v 230 V, 50 Hz/60 Hz, 2100 W Dimensions 440 mm x 440 mm x 700 mm (W x D x H) Weight 32 kg DH 5 Herschel Emulsifier The DH 5 Herschel emulsifier measures the ability of petroleum oils or synthetic fluids to separate from water. DH 5 is suitable for new or in-service oils which are subject to water contamination. Benefits at a Glance % A? "b4v 8 test positions, 2 additional pre-tempering places % A? "b4v Variable stirrer speed with digital display % A? "b4v Automatic timer stop and acoustic alarm % A? "b4v High level of safety Convenient Operation % A? "b4v Digital display of temperature, stirrer speed and stirring time % A? "b4v Stirrer head can be rotated over each test vessel and is locked accurately in position % A? "b4v A constant speed is guaranteed, even with changing viscosity % A? "b4v The stirrer stops automatically after a selected time with an acoustic signal % A? "b4v Easily removable stainless steel stirrer paddle Customized User Flexibility % A? "b4v Stirrer paddle made of copper (optional) % A? "b4v Luminous background (optional) ? 2017 Anton Paar GmbH | All rights reser ved. Specifications subject to change without notice.H44IP001EN-F Your distributor:
