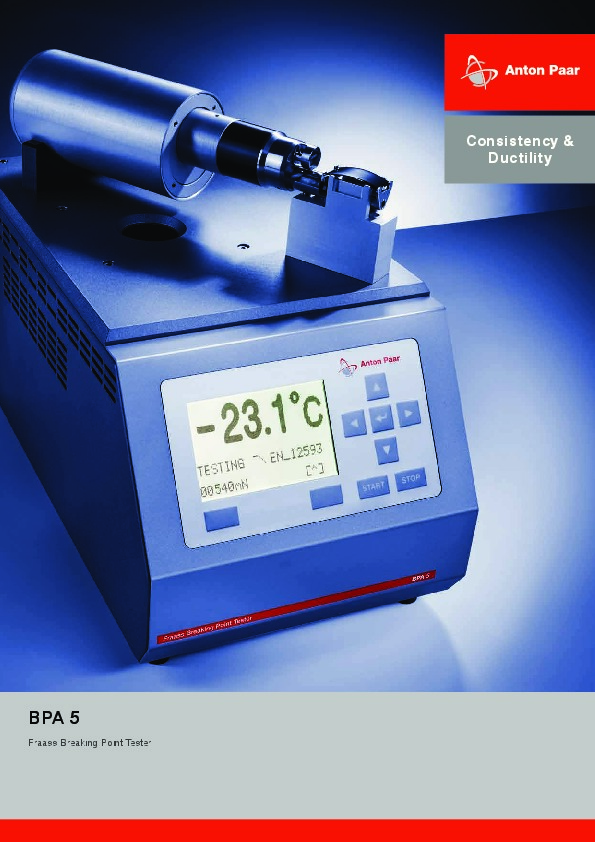

Consistency & Ductility BPA 5 Fraass Breaking Point Tester H54IP001EN-E BPA 5 Fraass Breaking Point Tester The automatic breaking point tester determines the brittle behavior of bitumen at low temperatures. The Fraass breaking point is the temperature at which the first crack appears in the coating of a thin, flat steel plaque, flexed under descending temperatures. Benefits at a Glance - Peltier cooling for the refrigeration of the test chamber - Touch-key panel with large LC-display - Software BPACon (optional) - Calibration set (optional) - Melting apparatus BPM 5 (optional) for steel plaque coating Convenient Operation Test chamber refrigeration by Peltier elements. These solid-state cooling elements require a light auxiliary refrigerator only and you therefore avoid investing in a bulky and highly energy-consuming cooler. Customized User Flexibility In connection with the BPACon software the breaking point tester serves as a research tool for different coatings. Not only test proceedings (e.g. variation of the bending force) can be easily watched via a graphic diagram on the PC screen, it is also possible to run Permanent Bending Tests in which the trend of the bending force vs. the temperature drops. The Force Recovery Trend serves as the criteria for the elasticity of the material under test. The progression in plasticity and in cracking will be displayed numerically or graphically in different scales. With specially created curves of trends for bending or recovery force even very small, nearly not visible breaks of the material can be found with high precision. Standard Methods EN 12593, JIS K 2207, IP 80 Technical Specifications Application range -45 °C to 60 °C (dependent on the temperature of the cooling circuit) Programs - Standard (cooling rate 1 K/min) for Fraass breaking point - Rapid (cooling rate 2 K/min) for very low breaking points - Search mode to find the approx. breaking point - User-definable to set up program modifications Refrigeration Peltier elements and optional circulation cooler Detection principle Force (resolution 10 mN) Interfaces RS232 for printer, RS232 for PC, LIMS compatibility Power supply 115 V/230 V, 50 Hz/60 Hz, 450 W Dimensions 230 mm x 450 mm x 400 mm (W x D x H) Weight approx. 12.5 kg Resolution 0.1 °C ? 2019 Anton Paar GmbH | All rights reserved. Specifications subject to change without notice. Your distributor:
