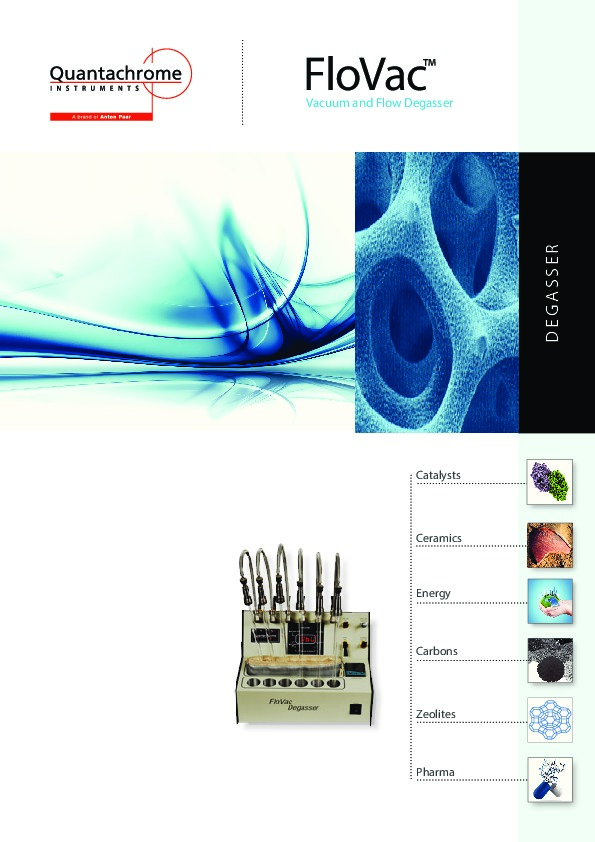

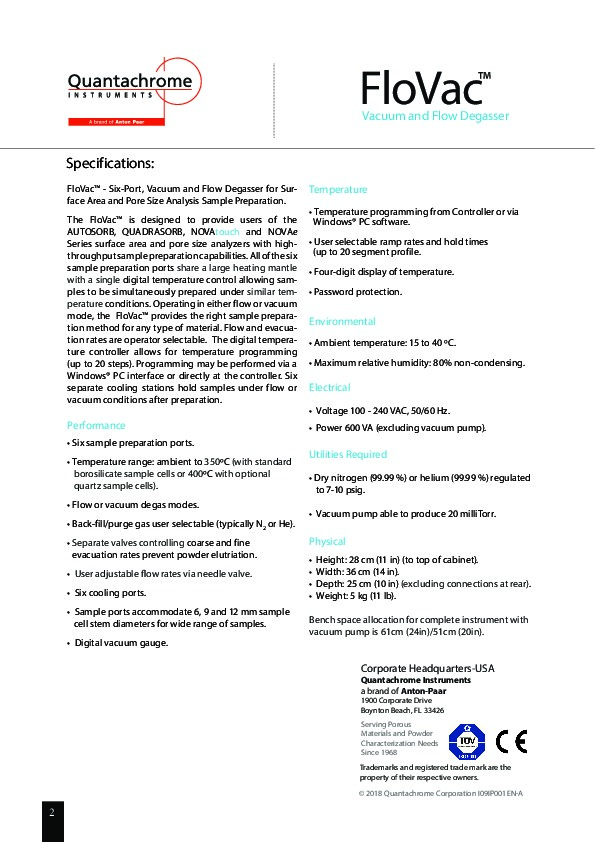

Catalysts Ceramics Energy Carbons Zeolites Pharma Vacuum and Flow Degasser FloVac ™ DEGASSER 2 Specifications: FloVac™ - Six-Port, Vacuum and Flow Degasser for Sur - face Area and Pore Size Analysis Sample Preparation. The FloVac ™ is designed to provide users of the AUTOSORB, QUADRASORB, NOVA touch and N OVA e Series surface area and pore size analyzers with high- throughput sample preparation capabilities. All of the six sample preparation ports share a large heating mantle with a single digital temperature control allowing sam - ples to be simultaneously prepared under similar tem- perature conditions. Operating in either flow or vacuum mode, the FloVac ™ provides the right sample prepara - tion method for any type of material. Flow and evacua - tion rates are operator selectable. The digital tempera - ture controller allows for temperature programming (up to 20 steps). Programming may be performed via a Windows® PC interface or directly at the controller. Six separate cooling stations hold samples under flow or vacuum conditions after preparation. Performance • Six sample preparation ports. • Temperature range: ambient to 350ºC (with standard borosilicate sample cells or 400ºC with optional quartz sample cells). • Flow or vacuum degas modes. • Back-fill/purge gas user selectable (typically N 2 or He). • Separate valves controlling coarse and fine evacuation rates prevent powder elutriation. • User adjustable flow rates via needle valve. • Six cooling ports. • Sample ports accommodate 6, 9 and 12 mm sample cell stem diameters for wide range of samples. • Digital vacuum gauge. Temperature • Temperature programming from Controller or via Windows® PC software. • User selectable ramp rates and hold times (up to 20 segment profile. • Four-digit display of temperature. • Password protection. Environmental • Ambient temperature: 15 to 40 ºC. • Maximum relative humidity: 80% non-condensing. Electrical • Voltage 100 - 240 VAC, 50/60 Hz . • Power 600 VA (excluding vacuum pump). Utilities Required • Dry nitrogen (99.99 %) or helium (99.99 %) regulated to 7-10 psig . • Vacuum pump able to produce 20 milliTorr . Physical • Height: 28 cm (11 in) (to top of cabinet). • Width: 36 cm (14 in). • Depth: 25 cm (10 in) (excluding connections at rear). • Weight: 5 kg (11 lb). Bench space allocation for complete instrument with vacuum pump is 61cm (24in)/51cm (20in). Corporate Headquarters-USA Quantachrome Instruments a brand of Anton-Paar 1900 Corporate Drive Boynton Beach, FL 33426 © 2018 Quantachrome Corporation I09IP001EN-A Trademarks and registered trade mark are the property of their respective owners. Serving Porous Materials and Powder Characterization Needs Since 1968 Vacuum and Flow Degasser FloVac ™
