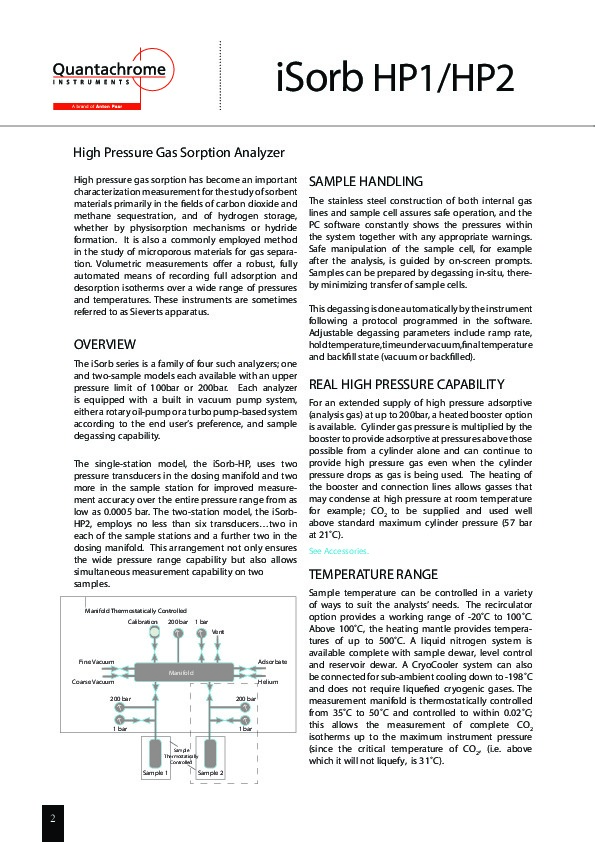

Catalysts Ceramics Energy Carbon Pharma ISOTHERMS PCT CURVES HEATS OF ADSORPTON iSorb HP1/HP2 High Pressure Gas Sorption Analyzer iSorb HP2 iSorb HP1 / HP2 2 High pressure gas sorption has become an important characterization measurement for the study of sorbent materials primarily in the fields of carbon dioxide and methane sequestration, and of hydrogen storage, whether by physisorption mechanisms or hydride formation. It is also a commonly employed method in the study of microporous materials for gas separa- tion. Volumetric measurements offer a robust, fully automated means of recording full adsorption and desorption isotherms over a wide range of pressures and temperatures. These instruments are sometimes referred to as Sieverts apparatus. OVERVIEW The iSorb series is a family of four such analyzers; one and two-sample models each available with an upper pressure limit of 100bar or 200bar. Each analyzer is equipped with a built in vacuum pump system, either a rotary oil-pump or a turbo pump-based system according to the end user"tas preference, and sample degassing capability. The single-station model, the iSorb-HP, uses two pressure transducers in the dosing manifold and two more in the sample station for improved measure - ment accuracy over the entire pressure range from as low as 0.0005 bar. The two-station model, the iSorb- HP2, employs no less than six transducers"x2rwo in each of the sample stations and a further two in the dosing manifold. This arrangement not only ensures the wide pressure range capability but also allows simultaneous measurement capability on two samples. SAMPLE HANDLING The stainless steel construction of both internal gas lines and sample cell assures safe operation, and the PC software constantly shows the pressures within the system together with any appropriate warnings. Safe manipulation of the sample cell, for example after the analysis, is guided by on-screen prompts. Samples can be prepared by degassing in-situ, there- by minimizing transfer of sample cells. This degassing is done automatically by the instrument following a protocol programmed in the software. Adjustable degassing parameters include ramp rate, hold temperature, time under vacuum, final temperature and backfill state (vacuum or backfilled). REAL HIGH PRESSURE CAPABILITY For an extended supply of high pressure adsorptive (analysis gas) at up to 200bar, a heated booster option is available. Cylinder gas pressure is multiplied by the booster to provide adsorptive at pressures above those possible from a cylinder alone and can continue to provide high pressure gas even when the cylinder pressure drops as gas is being used. The heating of the booster and connection lines allows gasses that may condense at high pressure at room temperature for example; CO 2 to be supplied and used well above standard maximum cylinder pressure (57 bar at 21A0pVC). See Accessories. TEMPERATURE RANGE Sample temperature can be controlled in a variety of ways to suit the analysts"ta needs. The recirculator option provides a working range of -20A0pVC to 100A0pVC. Above 100A0pVC, the heating mantle provides tempera- tures of up to 500A0pVC. A liquid nitrogen system is available complete with sample dewar, level control and reservoir dewar. A CryoCooler system can also be connected for sub-ambient cooling down to -198A0pVC and does not require liquefied cryogenic gases. The measurement manifold is thermostatically controlled from 35?C to 50?C and controlled to within 0.02A0pVC; this allows the measurement of complete CO 2 isotherms up to the maximum instrument pressure (since the critical temperature of CO 2, (i.e. above which it will not liquefy, is 31A0pVC). High Pressure Gas Sorption Analyzer Manifold Fine Vacuum Calibration 200 bar 200 bar 1 bar 200 bar 1 bar 1 bar Vent Sample 1 Sample 2 Sample Thermostatically Controlled Coarse Vacuum Adsorbate Helium Manifold Thermostatically Controlled iSorb HP1/HP2 3 High Pressure Gas Sorption AnalyzerBENEFITS High-Pressure Analysis: Analysis pressures up to 200bar. Efficient Use of Gas Source: Optional booster compresses adsorptive gas for analysis, allowing pressures up to 200bar from tank pressures as low as 55bar. Accurate Pressure Measurement: High-precision pressure transducers measure pressure to within 0.05% of full scale. High-pressure and low- pressure transducers allow pressure measurement in the optimum range of the transducers. High Sensitivity: Separate pressure transducers on the sample cell allow the cell to be isolated from the dosing volume for equil- ibration, thus reducing the void volume and increasing sensitivity. Wide Range of Analysis Temperatures: Choice of temperature control technologies offer a wide range of analysis temperatures, from below 75K up to 773K. Efficient Outgassing: Optional turbo-molecular pump allows outgassing pressures as low as 10 9 mbar for removing adsorbed gas from microporous samples, even those with tortuous pore networks. Flexibility: A wide range of sample sizes and shapes can be accom- modated by choosing from three different cell sizes. Precise Adsorptive Dosing: Multi-point calibration of the dosing manifold and precise control of the manifold temperature allow accurate dosing of the adsorptive, even at high pressure. Maximum Safety: Numerous interlocks and safety features are built into the software and the instrument to ensure the safety of the operator, even when working at 200bar. Leak Tight Manifold and Sample Cells: Use of metal seals throughout, along with low-leak pneumatic valves ensure low leak rates and therefore accurate measurements of surface excess. Flexible Software Interface: Powerful Windows based software provides a flexi- ble interface for setting up experiments, controlling instrument functions, and displaying data. A full complement of classical and modern models for data reduction and display is included. Easy Setup: The system is supplied complete and ready for operation. Vacuum pump(s), temperature control, tubing, sample cells, etc. are all included. iSorb HP1/HP2 4 High Pressure Gas Sorption Analyzer PERFORMANCE / PHYSICALiSorb HP1iSorb HP2 Analysis stations 12 Gas inputs 2 (optional 4)2 (optional 4) Max pressure data 200 bar a 200 bar a Min pressure data0.0005 bar0.0005 bar LP transducers 2 (1 bar)3 (1 bar) HP transducers 23 Total transducer count 46 Transducer accuracy <5'?

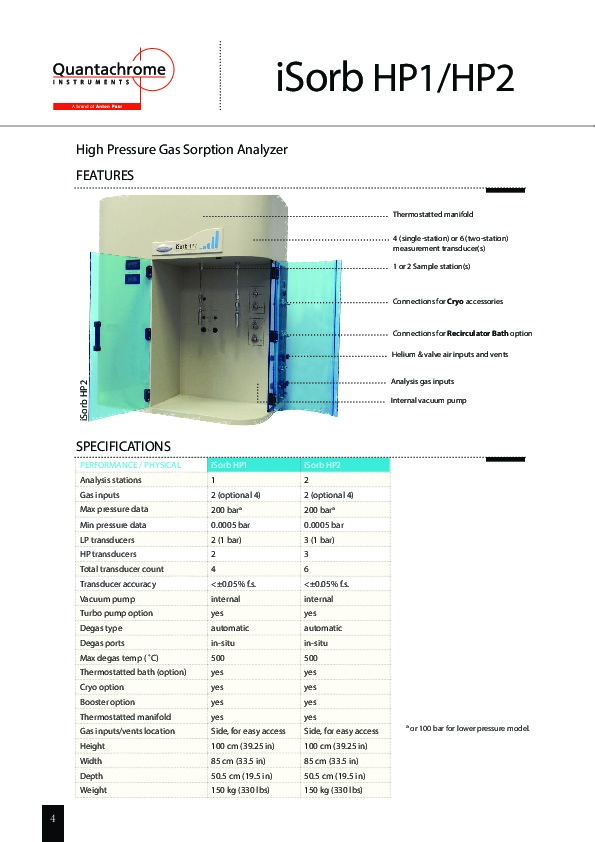

F0.05% f.s.<5'?

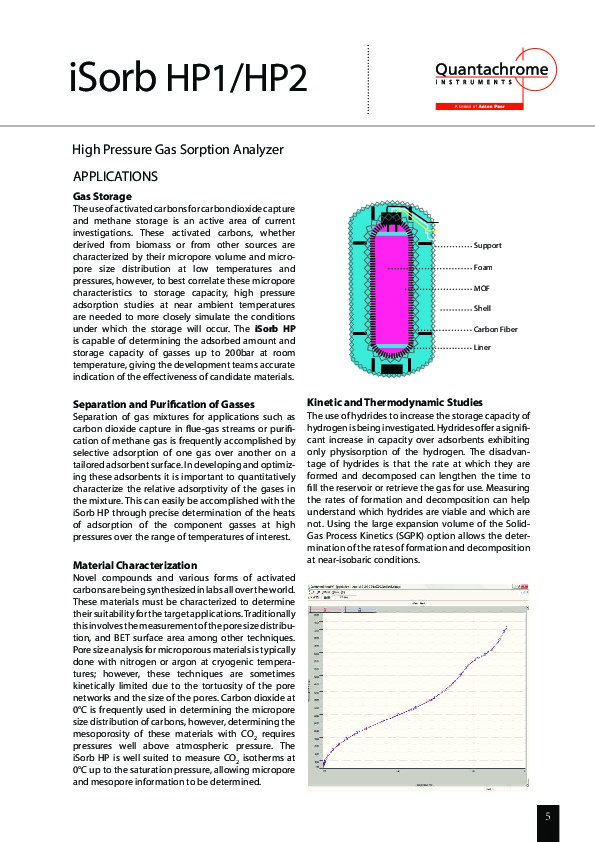

F0.05% f.s. Vacuum pump internalinternal Turbo pump option yesyes Degas type automaticautomatic Degas ports in-situin-situ Max degas temp ( A0pVC) 500500 Thermostatted bath (option) yesyes Cryo option yesyes Booster option yesyes Thermostatted manifold yesyes Gas inputs/vents location Side, for easy accessSide, for easy access Height 100 cm (39.25 in)100 cm (39.25 in) Width 85 cm (33.5 in)85 cm (33.5 in) Depth 50.5 cm (19.5 in)50.5 cm (19.5 in) Weight 150 kg (330 lbs)150 kg (330 lbs) a or 100 bar for lower pressure model. SPECIFICATIONS FEATURES 1 or 2 Sample station(s) Thermostatted manifold 4 (single-station) or 6 (two-station) measurement transducer(s) Connections for Recirculator Bath option Helium & valve air inputs and vents Analysis gas inputs Internal vacuum pump Connections for Cryo accessories iSorb HP2 iSorb HP1/HP2 5 High Pressure Gas Sorption AnalyzerAPPLICATIONS Gas Storage The use of activated carbons for carbon dioxide capture and methane storage is an active area of current investigations. These activated carbons, whether derived from biomass or from other sources are characterized by their micropore volume and micro- pore size distribution at low temperatures and pressures, however, to best correlate these micropore characteristics to storage capacity, high pressure adsorption studies at near ambient temperatures are needed to more closely simulate the conditions under which the storage will occur. The iSorb HP is capable of determining the adsorbed amount and storage capacity of gasses up to 200bar at room temperature, giving the development teams accurate indication of the effectiveness of candidate materials. Separation and Purification of Gasses Separation of gas mixtures for applications such as carbon dioxide capture in flue-gas streams or pur"T@%- cation of methane gas is frequently accomplished by selective adsorption of one gas over another on a tailored adsorbent surface. In developing and optimiz- ing these adsorbents it is important to quantitatively characterize the relative adsorptivity of the gases in the mixture. This can easily be accomplished with the iSorb HP through precise determination of the heats of adsorption of the component gasses at high pressures over the range of temperatures of interest. Material Characterization Novel compounds and various forms of activated carbons are being synthesized in labs all over the world. These materials must be characterized to determine their suitability for the target applications. Traditionally this involves the measurement of the pore size distribu- tion, and BET surface area among other techniques. Pore size analysis for microporous materials is typically done with nitrogen or argon at cryogenic tempera- tures; however, these techniques are sometimes kinetically limited due to the tortuosity of the pore networks and the size of the pores. Carbon dioxide at 0°C is frequently used in determining the micropore size distribution of carbons, however, determining the mesoporosity of these materials with CO 2 requires pressures well above atmospheric pressure. The iSorb HP is well suited to measure CO 2 isotherms at 0°C up to the saturation pressure, allowing micropore and mesopore information to be determined. Kinetic and Thermodynamic Studies The use of hydrides to increase the storage capacity of hydrogen is being investigated. Hydrides offer a signifi- cant increase in capacity over adsorbents exhibiting only physisorption of the hydrogen. The disadvan- tage of hydrides is that the rate at which they are formed and decomposed can lengthen the time to fill the reservoir or retrieve the gas for use. Measuring the rates of formation and decomposition can help understand which hydrides are viable and which are not. Using the large expansion volume of the Solid- Gas Process Kinetics (SGPK) option allows the deter- mination of the rates of formation and decomposition at near-isobaric conditions. Shell Foam MOF Support Carbon Fiber Liner iSorb HP1/HP2 6 High Pressure Gas Sorption AnalyzerSOFTWARE The associated software allows the user to define a measurement in terms of target pressure points or dose amount for both adsorption and desorption, complete with custom equilibrium criteria, sample temperature (according to the heating/cooling device selected) and choice of equation of state(EOS): CPQ6` Schmidt-Wenzel type, defined in terms of Helmholtz free Energy (NIST recommended) CPQ6` MBWR (Modified Benedict-Webb-Rubin type, Jacobsen 32-coefficients, NIST recommended) CPQ6` Lee-Kesler (generalized Benedict-Webb-Rubin) CPQ6` Peng-Robinson CPQ6` Soave-Redlich-Kwong CPQ6` Redlich-Kwong CPQ6` Van der Waals CPQ6` Ideal gas * Not all EOS available for all gases An intuitive user interface displays the current status of the valves, current pressures of the manifold and sample cell(s), and status of all available accessories. See figure 1. Pull-down menus give access to all instrument and measurement parameters, and post-processing func- tions. During analysis the operation of the instrument is completely automated, however, a manual mode allows all valves and accessories to be controlled by a simple click of the mouse. Safety interlocks and warnings throughout the program are designed to prevent the user from performing operations that could damage the instrument or cause personal injury. Precise control of the temperature of both the manifold and the sample are essential for accurate measurements close to the critical point of the adsorptive. This is illustrated by the adsorption isotherm of carbon dioxide on activated carbon at 45°C as shown in the figure 2: A unique feature of the software is its ability to estimate the absolute adsorbed amount of adsorbate. All gas adsorption instruments measure the surface excess rather than the adsorbed amount. For low pressures (below one atmosphere) this is essentially the same as the adsorbed amount, however, at high pressures where the density of the bulk gas approaches the density of the adsorbed phase, the difference is significant. figure 3 shows both the surface excess (diamonds) and adsorbed amount (stars) of methane on activated carbon. At low pressures the curves over - lap, but at high pressures the difference is evident. figure 3 figure 2 figure 1 iSorb HP1/HP2 7 High Pressure Gas Sorption Analyzer ACCESSORIES LN 2 Control System For operation at liquid nitrogen temperature (77.3K) a liquid nitrogen control system is available. This accessory consists of a sample dewar, a 60L self- pressurized supply dewar, LN 2 level sensor, and insulated supply lines. The software automatically maintains the LN 2 level in the sample dewar by adding small amounts of LN 2 from the supply dewar as needed. Multi-Gas Ports When frequently switching gasses used for analysis, it can become tedious to continuously connect and disconnect the c@7?erent gas tanks from the instrument. The Multi-Gas Ports option provides a means of simply selecting the gas through the software. This is especially convenient when routine analysis involves collecting isotherms of multiple gasses, e.g. H 2 and CO 2. Booster When working at pressures up to 200 bar the pressure in the gas tank will quickly drop below the maximum working pressure. In order to extend the life of the gas tanks and provide sufficient pressure of analyses up to 200 bar, a Booster option is available. It is strongly recommended for 200 bar systems and can also be quite useful for 100 bar systems. CryoCooler The CryoCooler is a self-contained refrigeration system, which can maintain the sample cell temperature to within 0.1K at temperatures from 75K up to 320K. This wide range of temperatures allows for surface area analysis at cryogenic temperatures as well as super critical analyses at higher temperatures. It is ideally suited for obtaining several isotherms at closely spaced temperatures when studying the heats of adsorption of a sample. The CryoCooler is completely cryogen-free, thus reducing cost of operation where liquefied gasses are not readily available. Solid-Gas Process Kinetics When studying processes, such as hydride formation/ decomposition, large amounts of gas can be required/ released. In order to study the kinetics of these processes the Solid-Gas Process Kinetics (SGPK) option provides a large reservoir attached to the manifold, which provides a volume in which to expand. Recirculator Precise control of the sample temperature is essential for accurate data, especially when working close to the critical point of the adsorptive gas. The Recirculator is the most common method of regulating the sample temperature. It is completely software controlled, ensur- ing unattended operation at temperatures from –20°C up to 100°C and maintains it to within 0.01°C. Miscellaneous A variety of gas regulators, sample cells, UPS, and other accessories are available. Ask your local Quantachrome representative about what is available. Several accessories are available for the iSorb HP1 and iSorb HP2 analyzers to increase flexibility and allow the instrument to be tailored to the needs and applications of the individual laboratory. LN 2 Option iSorb HP1/HP2 Our policy of continuous development may cause the information and specifications contained herein to change without notice or liability.Trademarks and registered trade mark are the property of their respective owners. Serving Porous Materials and Powder Characterization Needs Since 1968 The quality of Quantachrome"tas after sales service support is the reason we are proud to maintain life time relationships with our customers. Field Service Our global service staff assure you that Quantachrome Instruments will continue to be the reliable engines of material characterization laboratories. We offer you the flexibility of choosing from service contracts tailored to provide you with the response time, service package, and spare parts discounts that best fit your needs. Spare Parts Quantachrome spare parts are certified to work with our instruments. We provide rapid response spare parts orders, and keep large inventories of replacement parts and hardware available. Application Lab Our fully equipped, state-of-the-art powder characterization laboratory, email: application.qt@anton-paar.com), provides the option of contracting for expert testing services. Laboratory services are also available to validate the applicability of our products prior to your purchase using your actual samples. Lifetime Application Support We view the field support of our instruments as an essential component of our business strategy. Our expert scientists are always available to answer questions on applications, or the use of our instruments. We do this as a standard service regardless of whether you have a service contract with us or not. Partners in Science Quantachrome has a scientific research department consisting of world renowned experts in material characterization. Our team conducts collaborative research projects with leading material research labs around the world. They regularly publish articles in leading peer reviewed journals, and speak at technical symposiums around the world. Renowned innovator for today"tas porous materials community. For almost half a century Quantachrome"tas scientists and engineers have revolution- ized measurement techniques and designed instrumentation to enable the accurate, precise, and reliable characteri- zation of powdered and porous materials. We have an unwavering commitment to providing state of the art technology, along with superior and unparalleled customer service and support. Our commitment to customers is to support you before, during, and after the sale throughout the lifetime of our instruments. This is a big commitment because our products are so robust and reliable that we regularly find many still in use for decades. Corporate Headquarters-USA Quantachrome Instruments a brand of Anton-Paar 1900 Corporate Drive Boynton Beach, FL 33426 www.quantachrome.com © 2019 Quantachrome Corporation I14IP001EN-B
