trace SN cube

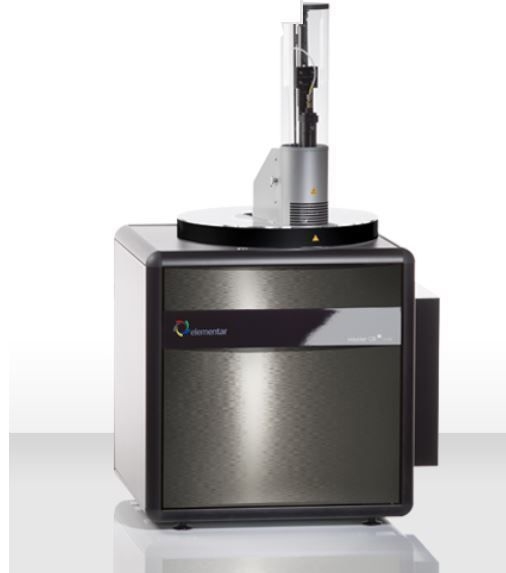

The very best in ppb analysis High sensitivityHigh data quality Great flexibility Extreme durability KEY FEATURES • Industry-leading performance and versatility • Detection limit of 6?ppb for sulfur • Detection limit of 15?ppb for nitrogen • For liquids, LPG, gas and solid samples • Outstanding robustness • Up to 56 position autosampler Outstanding sample flexibility COMBUSTION GAS DRYINGDETECTION S am ple Ca ro us el L iq ui d S am ple I nj ectio n C om bus tio n Tub e C om bus tio n Tub e Fu rn ace C LDH ig h S ens FLDH ig h S ens S ynt he tic A ir A rg on, O xyg en Functional principle of trace SN cube The trace SN cube is the world's most sensitive combustion analyzer for sulfur and nitrogen in diesel, gasoline and related samples. The catalyst-supported digestion technology ensures complete digestion of all kinds of samples without soot formation or insufl- cient recovery. The sample is always injected directly into the combustion tube, there is no need for time-consuming boat inlet feeding. Thus, the analysis time is just 3-5 minutes, depending on sample type. The trace SN cube works as two analyzers in one box. The sample is injected twice in diflerent combustion tubes which allows the specic optimization of the oxidation process for each element. CATALYST SUPPORTED COMBUSTION A well-known problem in high temperature combustion of oil and petrochemical samples is soot formation, caused by incomplete combustion. By using special developed accelerants, the oxidation process can be optimized dramatically. Almost any sample can be ignited without soot production at injection volumes up to 100?µl. This offers the customer a flexibility in sample handling which is outstanding in this class of analyzers. Also the main- tenance efforts are drastically reduced. OIL ANALYSIS BY HIGH TEMPERATURE COMBUSTION High temperature combustion for the determination of sulfur and nitrogen is still the matter of choice if sensitivity really counts. No other method delivers equally sensitive, matrix-independent results. By means of UV fluorescence detection for sulfur and chemiluminescence for nitrogen determination, detection limits of as low as 10?ppb can be achieved without problems, outperforming all competing techniques. The trace SN cube works with two independent furnaces and combustion tubes. Thus, it is possible to adjust all parame- ters which may influence the results, such as temperature, injection volume, injection speed etc. of both channels completely independently. This results in an outstanding sample flexibility at always highest precision. The known problem of interference in UV fluorescence detection by NO (higher N concentrations simulate too high sulfur contents) is solved by means of Elementar's unique N Excess module. SO 2 is collected at an adsorption column and released after the decay of the signal caused by NO. This technique allows the precise determination of 0.1mg/kg S in the presence of more than 100mg/kg N. True two channel operation Unique N Excess module High sensitive detection High sensitive chemiluminescence and UV fiuorescence detectors ensure utmost sensitivity: 6?ppb for sulfur and 15?ppb for nitrogen. This ultra-trace detection power gives rise to uncompromised analysis of sulfur and nitrogen even in samples of lowest con- centrations. This ensures that the trace SN cube greatly exceeds all requirements of international standards and gives conffdence to fulffll expected tighter standard requirements in future. Outstanding sample flexibility Along with liquid injections the trace SN cube can be equipped with gas, LPG or solids module for a variety of matrices. A temperature controllable autosampler is also available which allows the analysis of highly volatile samples. In addition, the instrument can be easily retrofftted to measure liquid samples. Elementar Analysensysteme GmbH Elementar-Straße 1 · 63505 Langenselbold (Germany) Phone: +49 (0) 6184 9393-0 | info@elementar.com | www.elementar.com IDEAL SOLUTION FOR • Refineries • R&D petrochemical laboratories • Quality control laboratories • Contract laboratories SAMPLE TYPES ANALYZED • Petroleum products • Liquid organics • Gas • LPG Art.-No. 14.00-5201, 01?/?2020 A Outstanding precision and accuracy through high per- formance combustion. Matrix- independent results. Longterm stability of calibration. Wide range of optional conversion kits available for special applica- tions. Upgradeable at any time. QUALITY YOU CAN TRUST Our consumables and spare parts are designed to meet the highest quality standards and reliability. They are certified and validated in accordance with international norms and standards. We do not compromise on quality of our parts and chemicals – this is the prerequisite of a guaranteed long lifetime of our instruments. Trace analysis has never been easier! Outstanding robustness and lon- gevity thanks to state-of-the-art technology. 10 year warranty on the furnace. Outstanding sensitivity thanks to high performance, state-of-the- art technology. EASE OF USE The trace SN cube is optimized to significantly simplify the daily routine operation. Clearly arranged, easily accessible system components as well as a furnace that slides out minimize maintenance efforts. The tool-free clamp connection system ensures a reliably leak-tight instrument at any time. Thus, customers can enjoy smooth analyses and confidence in their results. SAMPLE SULFUR [mg/kg] RSD [% ] NITROGEN [mg/kg] RSD [ %] DIESEL 348 0.74 1660.65 MINERAL OIL 0.664 0.966.66 1.88 TECHNICAL OIL 3.84 2.230.06 4.53 BENZENE 0.225 0.480.224.65 KETONE 183 1.04 7. 5 61.85 AQUEOUS PROTEIN SOLUTION 26.9 1.343632.42 BIOMASS 27.81.83 3851.31 Injection volume 20-100 ?l High sensitivity High data quality Great flexibilityExtreme durability Elementar – your partner for excellent elemental analysis Elementar is the world leader in high performance analysis of organic and inorganic elements. Continuous innovation, creative solutions and comprehensive support form the foundation of the Elementar brand, ensuring our products continue to advance science across agriculture, chemical, environmental, energy, materials and forensics markets in more than 80 countries.
